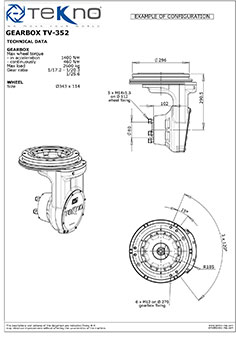

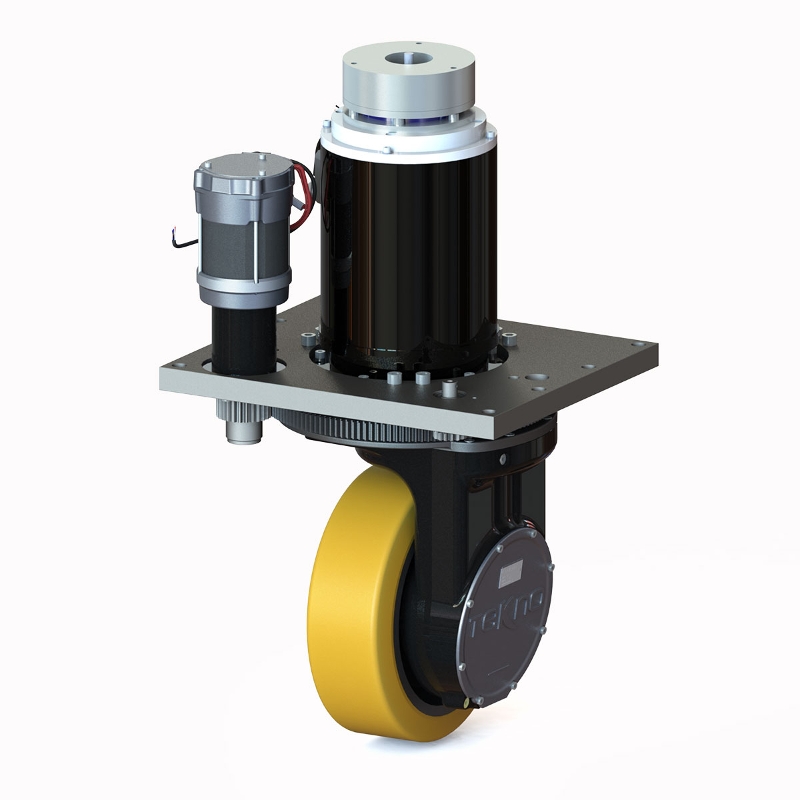

TV 352
TV 352
TV series - Vertical drive systems
Available options
- Max wheel torque in acceleration 1400 Nm
- Max wheel torque continuously 460 Nm
- Max load on the gearbox 2600 kg
- Gear ratio up to 1/25.6
- Ø 343 x 114 mm
- Type AC, DC
- Voltage from 24V to 80V
- Power up to 6.5 kW
- Electromagnetic
- Voltage from 24V to 80V
- Static brake torque up to 95 Nm
- Hand release lever available
- Pinion and crown
- Attachment for chain size 5/8x3/8
- Type AC, DC, PM
- Voltage from 24V to 80V
- Power 0.7 kW
- Output torque 120 Nm
Available with set up for:
- Potentiometer pinion Z14 m2.5
- Position proxy
- Mechanical stop
Benefits
- High torque drive unit for machines with Ø 350 mm wheels
- The version with fixed motor prevents the risk of wiring damage
- Low noise ground gears
- Reduced backlash
- Fully oil lubricated gearbox
- Possibility of full integration with traction motor, steering system, plate and electronics
- High efficiency 95%
- 100% tested and certified drive system
- Wide range of wheels
- Wide range of motors
- Easy maintenance
- ISO9001 and ISO14001 certified
- Made in Italy
